The Challenge

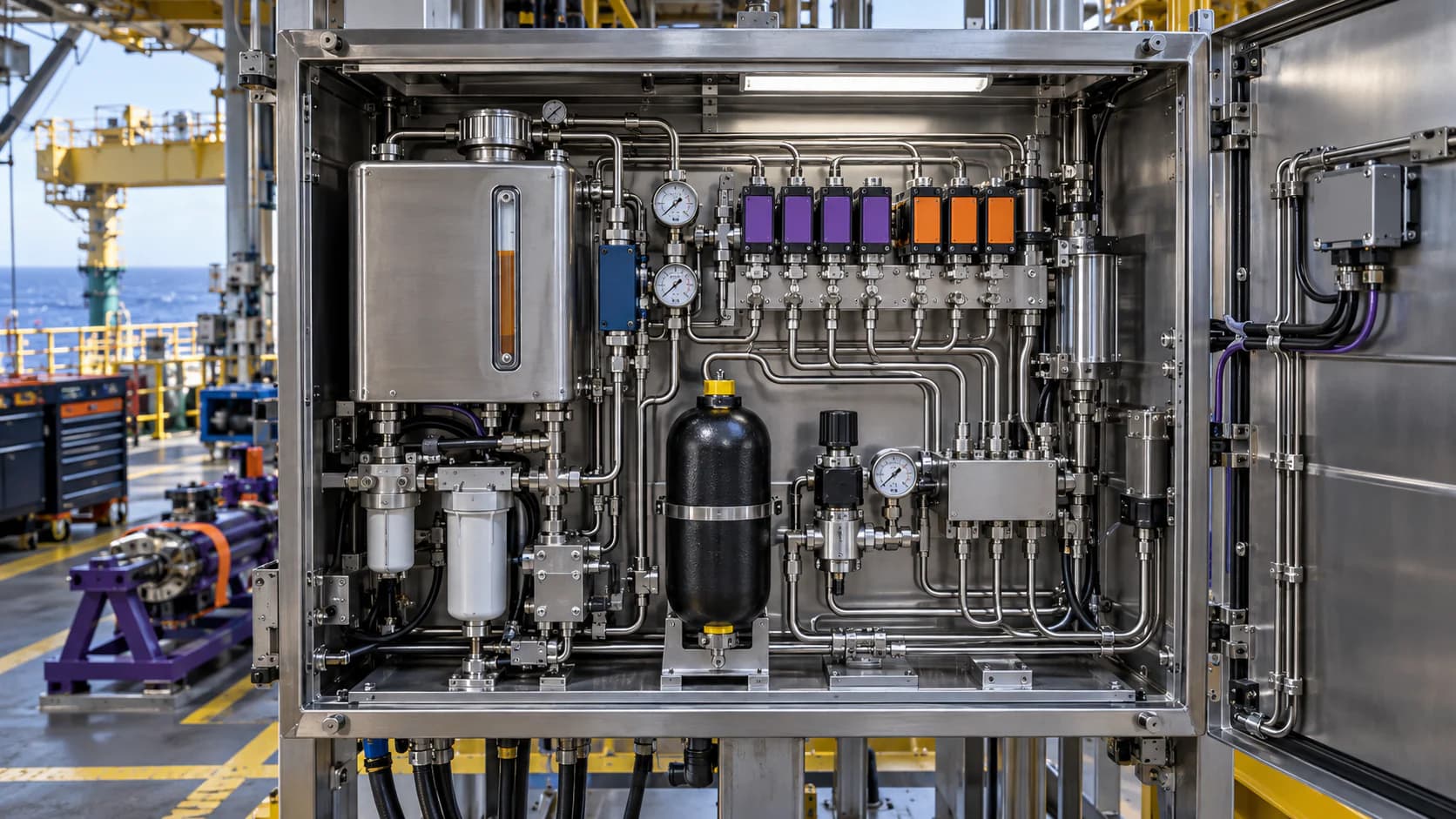

Wellhead Control Panels combine hydraulic control fluid, pneumatic instrument supply and process-side tubing and fittings in a compact, often remote and environmentally exposed package. Component selection mistakes that would be minor in a plant environment can become significant reliability problems in a WHCP operating unattended in the field.
Technical Breakdown
Hydraulic control lines and fittings inside a WHCP typically see sustained pressure cycling as the panel actuates wellhead and downhole safety valves — connection technology and material need to be rated for fatigue service, not just static pressure.
Instrument-grade tubing and fittings for pilot/control circuits need to match the panel's ambient exposure: temperature extremes, UV, and — for offshore or coastal wellheads — salt-air corrosion resistance become primary selection drivers alongside pressure rating.
Manifolds and valves within the panel need to support the panel's fail-safe logic (typically fail-safe-close on the wellhead safety valves on loss of hydraulic pressure) — component selection has to be consistent with that safety function, not just with the nominal flow/pressure duty.
Filtration of the hydraulic control fluid is a frequent point of field failure if under-specified — control-line blockage from contamination is one of the more common causes of WHCP malfunction, making filter selection and maintenance interval genuinely safety-relevant.
Because WHCPs are frequently remote and serviced infrequently, component standardisation and spares commonality across a field's WHCP fleet materially reduces both maintenance burden and the risk of an incorrect replacement part being fitted.
Engineering / Procurement Checklist
What to define before requesting a quotation.
- Hydraulic control fluid type and required fatigue/pressure-cycling rating for fittings
- Ambient exposure conditions (temperature range, offshore/coastal corrosion exposure)
- Fail-safe logic of the panel and consistency of component selection with that function
- Hydraulic fluid filtration requirement and maintenance interval
- Component standardisation across the field's WHCP fleet, where applicable
